Rolling Dies

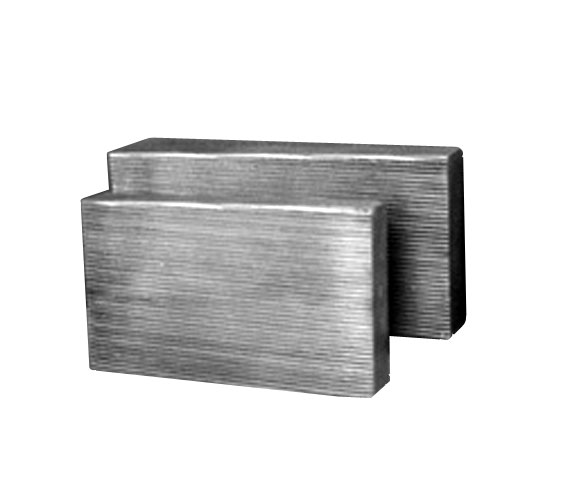

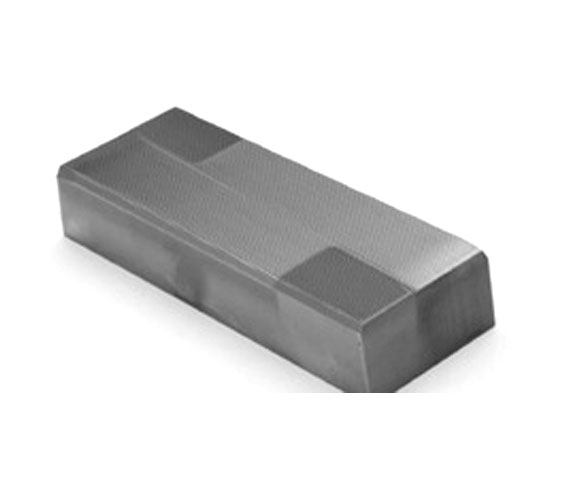

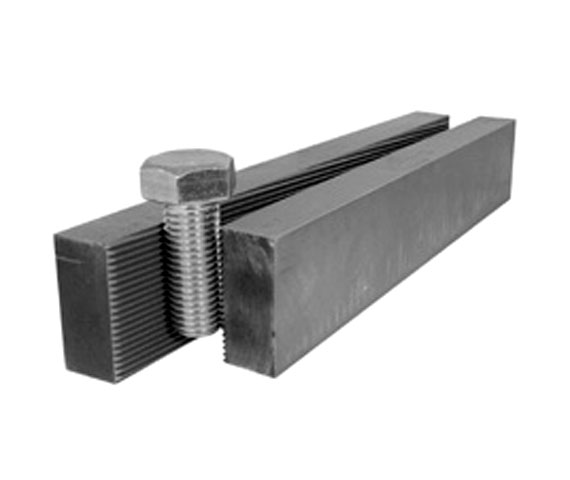

Thread Rolling Flat Dies

We are manufacturers of Thread Rolling Flat Dies for production of all types of Automotive, Industrial, Structural and General Purpose Fasteners made of Mild Steel, High Tensile Steel and Stainless Steel. Dies are manufactured from selected Cold Work Tool Steel. Thread Rolling Flat Dies are made for dies having maximum length upto 410mm. Dies are made for all Indian Standard machine blocks and also made for International Blocks like WF Series, TR Series, DPR Series and Others as per requirement. Ground Dies have correct Dimensional Accuracy, Profile comparable to Standards and Good Life; Dies are supplied in Ground Shining Finish and Grit Blasted Finish, as per requirement. Dies can be supplied with Radiused Root Runout (RRO).

We are manufacturers Flat Dies in Ground Thread Form for all standard machine section and Thread Standards are as below:-

Thread Rolling Flat Dies are offered in two Qualities, Regular Quality and Premium Quality. Regular Quality dies are most selling dies and have general thread rolling application. Premium Quality dies are specially toughened dies which have high hardness but also high toughness. These dies are well accepted in Stainless steel fasteners making industries and also used to roll Hardened materials or fasteners after heat-treatment.

INFORMATION REQUIRED FOR ORDERING JYOTI TOOLS FLAT DIES :

• DIES SECTION (Lengths of both dies, Height, Thickness and Holding Angle if any)
• THREADING (Diameter and Thread Pitch along Thread Standard of Fasteners to be rolled)
• TYPE OF DIES (Having Threading on Both Faces or Single Face)
• QUALITY (Regular for General Thread Rolling and Premium for Stainless Steel and Hard material rolling)
• TYPE OF FINISH (Natural Ground Shining or Grit Blasted)
• ANY SPECIAL OPERATION (Cross knicks at starting of dies, Half Grit Blasting, Radiused Runout Grinding)
